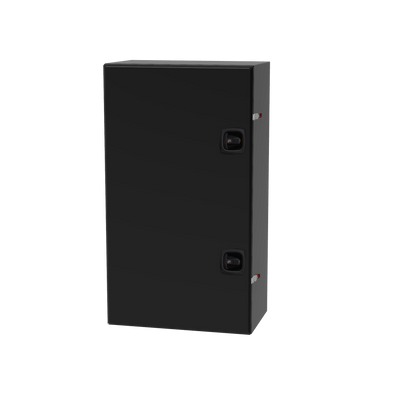

Medium vertical chest

This box offers a generous 11 cubic feet of capacity for storing your accessories, from BBQ equipment to sports and outdoor gear. Constructed entirely of aluminum with TIG welds, this box guarantees superior quality. The aluminum used is 0.080 inches thick, making the box both ultra-strong and lightweight. It is equipped with two push-to-open toggle locks with key locking, two toggle latches for better sealing, and a stainless steel piano-type hinge. It is possible to add an optional perforated door front, multi-hole internal panels for attaching accessories. It contains an internal rail system to accommodate shelves if needed.

Designed and manufactured in Quebec.

Recommended installation:

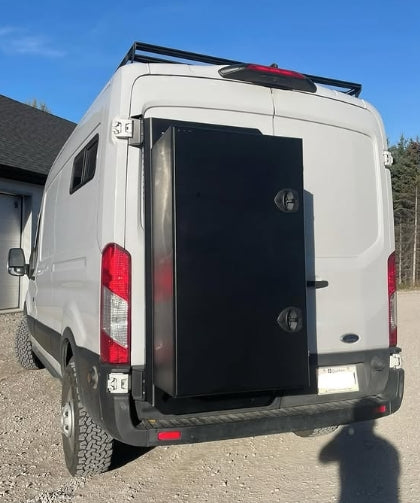

• Ideally, this trunk should be installed on the driver's side left rear door. The trunk's 26-inch width may block access to the main right door release handle.

Dimensions

Exterior: 47" x 26" x 16"
Opening: 45" x 24"

Specifications

• All 5052 aluminum construction
• TIG welded
• Textured black powder coat paint
• Ultra-rugged
• Light
• Trunk Load Capacity: 120 lbs
• Total Load Capacity: 200 lbs, including the weight of the rack per door

• Stainless steel piano hinge
• Stainless steel hardware
• Rocker handle with lock and key
• Toggle latch
• 3/8" Foam Sealant


Note: Chests may not be 100% waterproof.

Warnings:

• May cause reversing sensors to beep when reversing (varies by van)
• Do not add additional items such as fuel cans or similar to the exterior of the box. This will void your warranty, as it significantly increases the weight's leverage when closing the door.
• When fully loaded, the door should be closed intentionally, not slammed.
• Overloading boxes or accessories may damage doors and hinges, which will void your warranty.

Assembly :

Boxes require a single tubular bracket, a full door, or a Deluxe model bracket to be mounted on the van. Installation is available at our facility for $150.

Production time:

At Phlö System, all our products are made to order, requiring a production time of 6 to 8 weeks. After your pre-order, we will contact you with additional information.

Delivery :

This product requires installation exclusively in the Quebec City area. After your pre-order, the Phlö System team will contact you to verify the feasibility of your project and schedule the installation.
