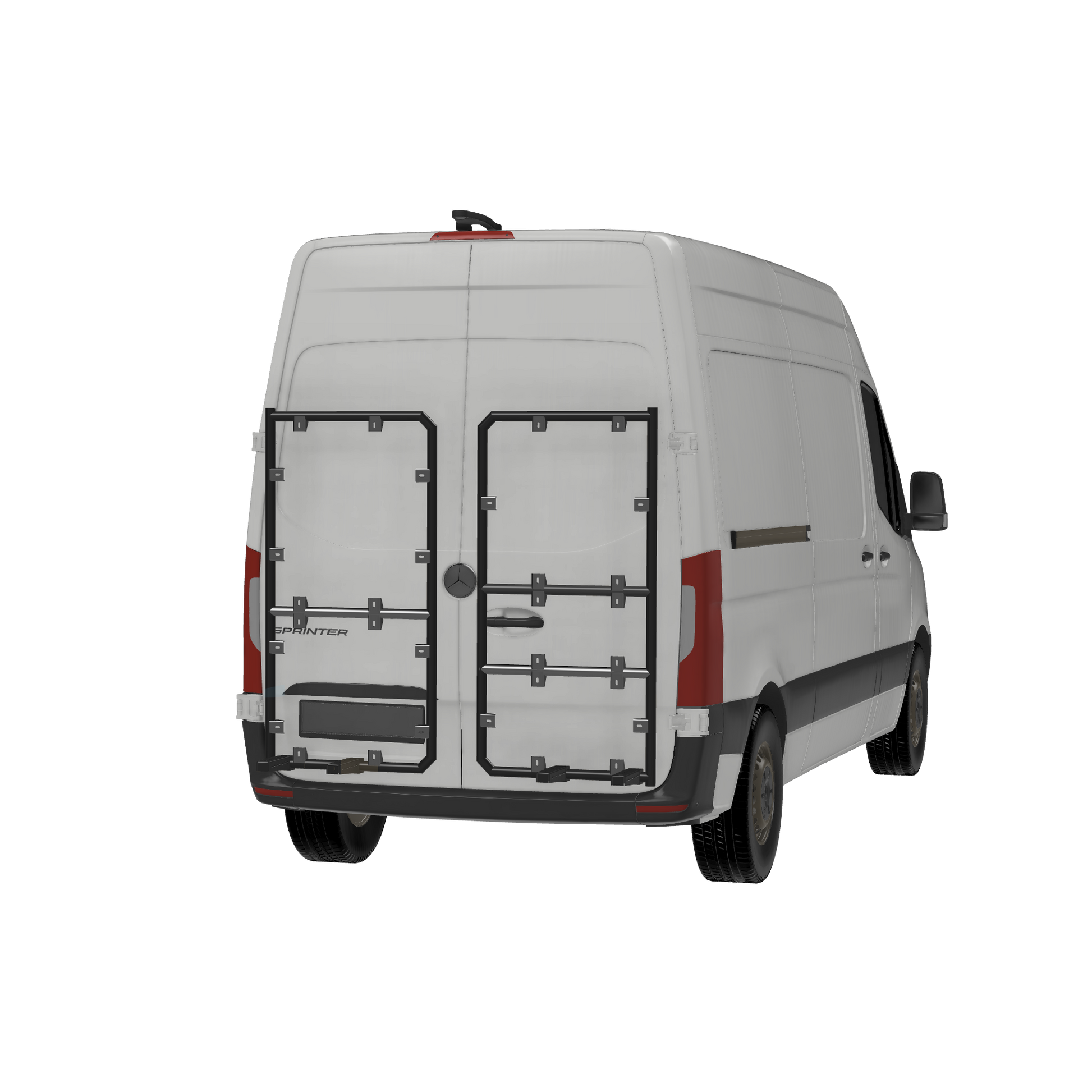

Full left door rack - Sprinter 2019+ hinge 270

Full door rack for Sprinter 2019+. This tubular rack allows the installation of small and medium boxes, as well as a large ski and snowboard box. Perforated panels (sold separately) can be added in the lower and/or upper section to mount practical accessories such as wood baskets, Maxtrax, Rotopax and more. The racks follow the opening movement of the doors, making it easy to access the inside of the vehicle.

The racks install on 180-degree or 270-degree rear door hinges by selecting the required bracket, at no extra cost. Installation requires only two holes, hidden behind the Mercedes logo.

Designed and manufactured in Quebec.

Specifications:

• 6061 aluminum rack
• Fully TIG-welded aluminum construction
• Load capacity of 225 lb per door, including the weight of the rack and accessories
• Rack weight with brackets and hardware: 24 lb
• 308 stainless steel hinge bracket
• Stainless steel mounting hardware
• Textured black powder coat finish
• Requires drilling 2 holes for mounting
• Designed for VS30 vans (2019 and later) 2500, 3500, 4x4 and 4x2

Warnings:

• Do not add extra items such as fuel cans to the outside of the box. This will void your warranty, as it significantly increases the leverage of the weight when closing the door.
• When fully loaded, the door should be closed with intention, not slammed.
• Overloading boxes or accessories may damage doors and hinges and will void your warranty.
• Not recommended for e-bikes
• May cause parking sensors to beep when reversing (varies by van)

Installation:

Installation at our shop in Stoneham is $150 per door and takes 1 to 1.5 hours per door, depending on the accessories.

Availability:

Our regular products are in stock most of the year. If an item is temporarily out of stock, we'll let you know the lead time before confirming your order. Custom projects take 6 to 8 weeks on average.

Delivery and installation:

This product can be shipped, picked up at our shop in Stoneham for self-installation, or installed at our shop by appointment. After your order, the Phlö System team will contact you to confirm your option and plan the next steps. Installation videos are available on our YouTube channel.
