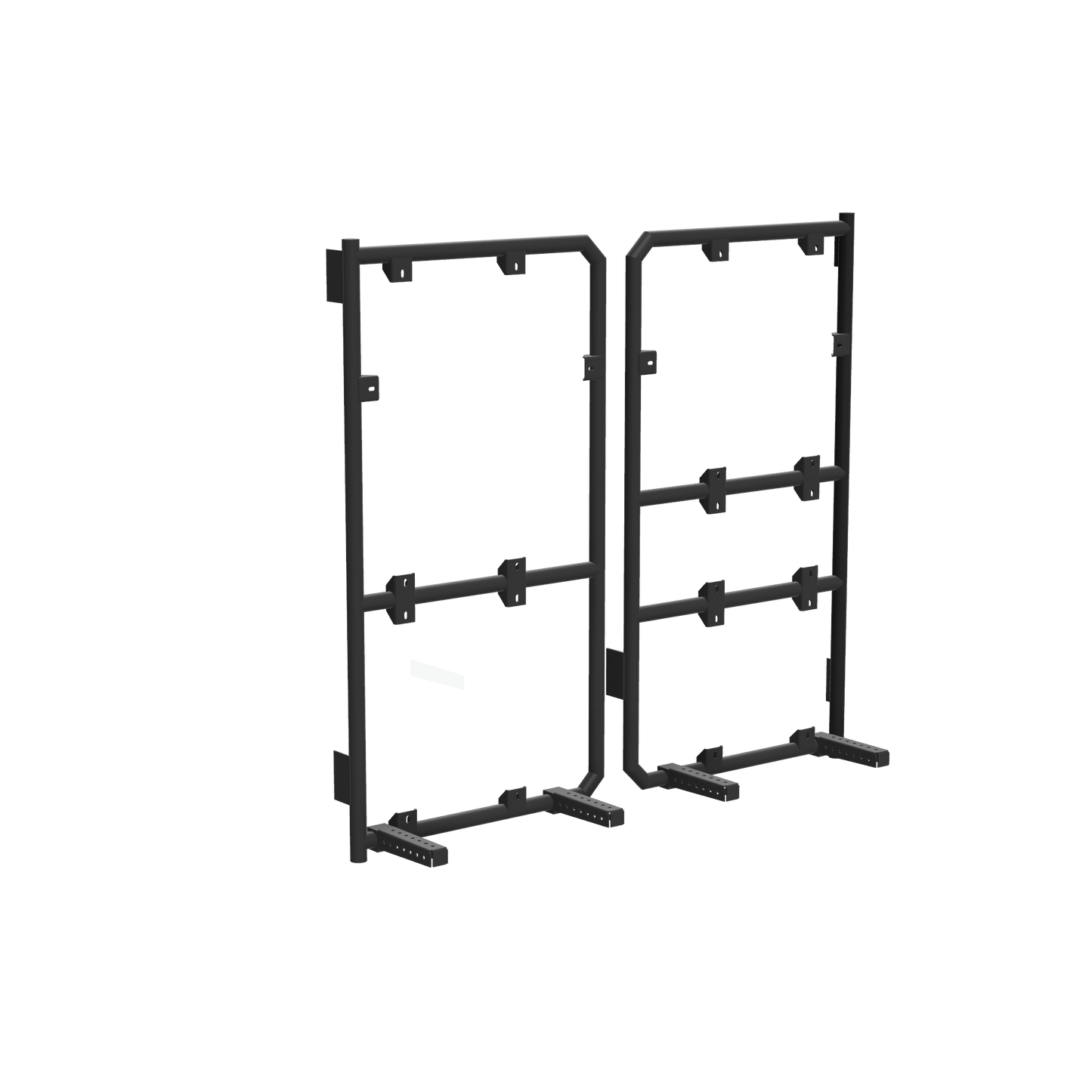

Full door rack - Promaster

Full door support, rear left driver side for Ram Promaster 2014+. This tubular support allows the installation of small and medium trunks, as well as the possibility of installing a large ski and snowboard box. It is possible to add perforated panels (sold separately) in the lower and/or upper section for the installation of various practical accessories such as wood baskets, Maxtrax, Rotopax and others. The supports follow the opening movement of the doors, which facilitates access to the interior of the vehicle.

The brackets install on the existing rear door hardware and do not require drilling new holes in the doors. A set of two 10-inch support arms with 1.5-inch diameter tube mounts are included with each bracket.

Designed and manufactured in Quebec.

Dimensions

Exterior: 26" x 20" x 16"
Opening: 24" x 18"

Specifications

• 6061 Aluminum Bracket
• Fully TIG welded aluminum construction
• Load capacity of 200 lbs, including weight of the rack
• Weight of bracket with fixing and hardware: 24 lbs
• 308 Stainless Steel Hinge Bracket Fixing
• Stainless Steel Fastening Hardware
• Textured black powder coat baked paint
• Not recommended for electric bikes.
• Designed for Promaster vans with or without rear windows.
• 2 x 10 inch support arms with 1.5 inch diameter tube mount are included with each bracket.

Warnings:

• May cause reversing sensors to beep when reversing (varies by van)
• Do not add additional items such as fuel cans or the like to the outside of the box. This will void your warranty as it significantly increases the leverage of the weight when closing the door.
• When fully loaded, the door should be closed intentionally, not slammed.
• Overloading boxes or accessories may damage doors and hinges, which will void your warranty.

Assembly :

At our facility, installation is priced at $150 for each door, with an estimated time of 1 hour per door.

Production time:

At Phlö System, all our products are made to order, requiring a production time of 6-8 weeks. After your pre-order, we will contact you with additional information.

Delivery :

This product requires installation exclusively in the Quebec City area. After your pre-order, the Phlö System team will contact you to verify the feasibility of your project and plan the installation.
