Spare Tire Carrier - Left Door - Sprinter 2019+ Hinge 180

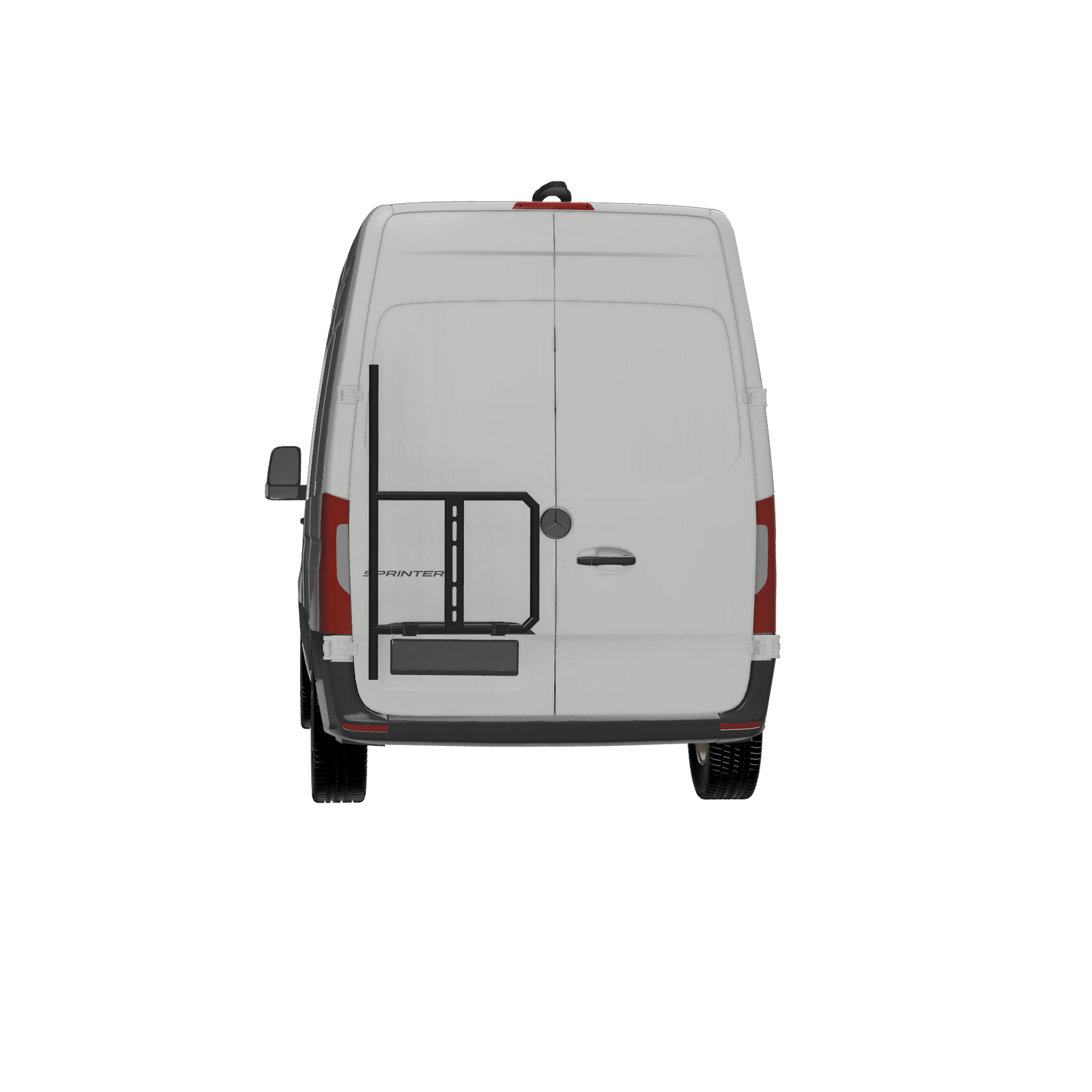

Spare tire carrier for the rear left driver's side door for Mercedes Sprinter 2019+ and Revels 2020+. The carriers install on the rear door hinges at 180 degrees, installation requires only 2 holes not visible behind the Mercedes logo. The carrier is adjustable for a wide variety of tire sizes and there are 2 mounting adapters for steel wheels or rims. The carriers follow the opening movement of the doors, making it easier to access the interior of the vehicle.

Designed and manufactured in Quebec.

Specifications:

• 6061 aluminum bracket
• Fully TIG welded aluminum construction
• Load capacity of 200 lbs, including the weight of the rack
• Weight of bracket with mounting and hardware: 18 lbs
• 308 Stainless Steel Hinge Bracket Mount
• Stainless steel mounting hardware
• Textured black powder coat baked paint
• Designed for all Mercedes Sprinter tire sizes, standard to off-road
• Tire mounting adapter for steel wheels and 6x130 rims
• Designed for VS30 vans (2019 and later) 2500, 3500, 4x4 & 4x2 with or without rear windows
• A set of two 10-inch support arms with 1.5-inch diameter tube attachment are included with each bracket.

Warnings:

• May cause reversing sensors to beep when reversing (varies by van)
• Padlock included.
• When fully loaded, the door should be closed intentionally, not slammed.
• Overloading chests or accessories with excess weight may damage doors and hinges, and this will void your warranty.
• Installation cost: $150 from the manufacturer.
