Spare Tire Carrier with Ladder – Sprinter 2019+ 270 Degree Hinge

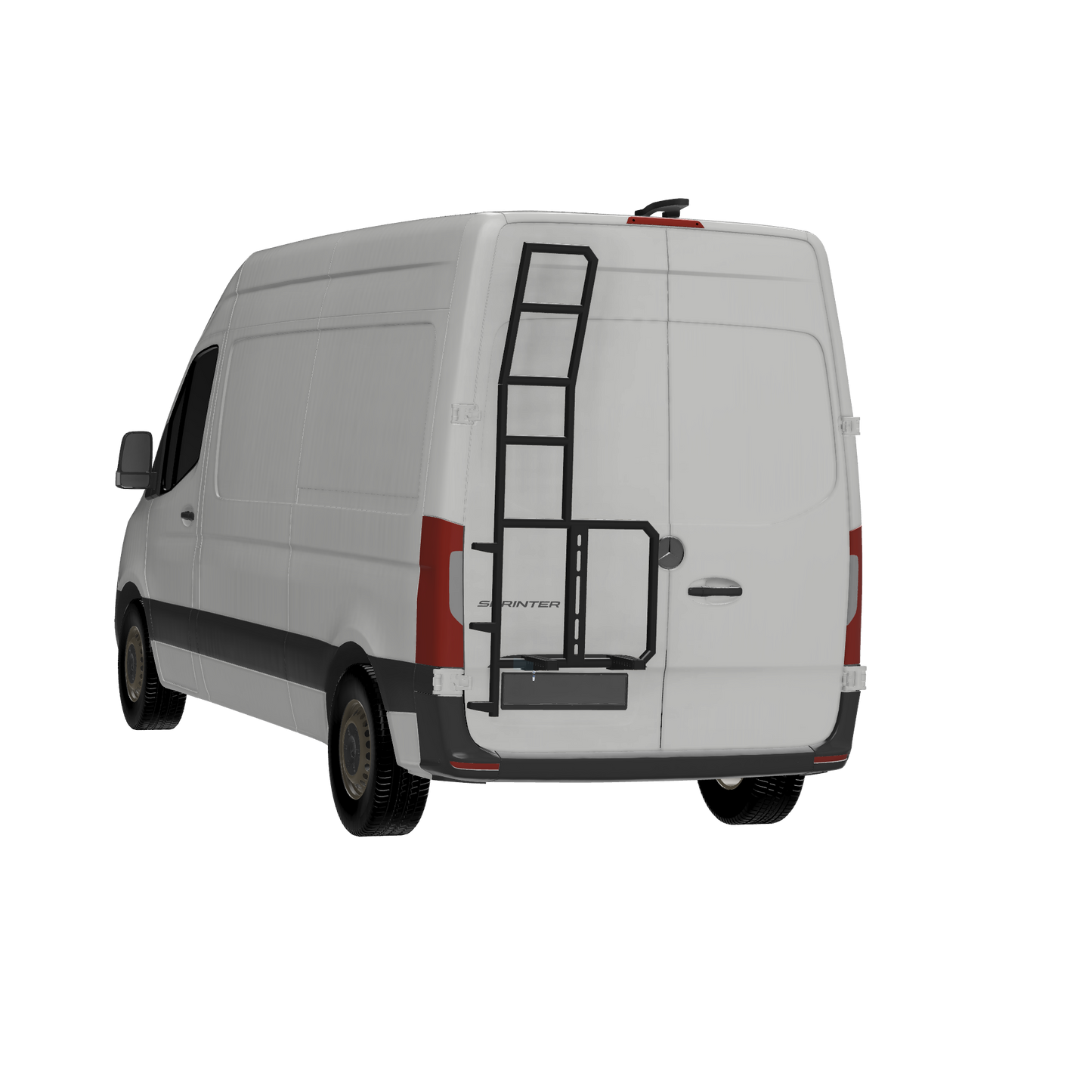

Spare tire carrier with integrated ladder for the left rear door (driver side) of Mercedes Sprinter 2019+ and Revel 2020+. The carriers install on 270-degree rear door hinges; installation requires only 2 holes, hidden behind the Mercedes logo. The carrier adjusts to a wide range of tire sizes and comes with 2 mounting adapters for steel wheels or rims. The ladder has 4 full-size steps at the top and 3 small steps at the bottom on the tubular frame. The carriers follow the opening movement of the doors, making it easy to access the inside of the vehicle.

Specifications:

• 6061 aluminum rack
• Fully TIG-welded aluminum construction
• Load capacity of 225 lb per door, including the weight of the rack and accessories
• Rack weight with brackets and hardware: 18 lb
• 308 stainless steel hinge bracket
• Stainless steel mounting hardware
• Textured black powder coat finish
• Designed for all Mercedes Sprinter tire sizes, stock to off-road
• Tire mounting adapter for steel wheels and 6x130 rims
• Designed for VS30 vans (2019 and later) 2500, 3500, 4x4 and 4x2 with or without rear windows

Lock not included

Warnings:

• When fully loaded, the door should be closed with intention, not slammed
• Overloading boxes or accessories may damage doors and hinges and will void your warranty
• May cause parking sensors to beep when reversing (varies by van)
• Installation cost: $150 at our shop.
